P.PP-750

New!

Gas tilting bratt pan - stainless steel tank P.PP-750

Gas tilting bratt pan with a volume of 50L, Line 700.

TYPE

External dimensions w*d*h

Volume

External dimensions wdh	800 x 700 x 900 mm
Volume	50 l
dimensions of the cooking tank	700 x 435 x 160 mm
Tank bottom material	stainless steel
Weight	100 kg
manual tilting
Tap for cold water
GAS consumption	1,09 m³/h
Heat input in SAVING power	7,3 kW
Heat input in FULL power	10,9 kW
temperature range	50-250 °C
GAS connection	3/4 "

more info I want to know more

Gas tilting bratt pan P.PP-750
product line

Use
these units are designed for thermal food processing through frying in oil or stewing in water.
The pan surface is non-stick, and typically used to prepare dishes such as sautéed meals, stews, roasted vegetables or meat, fried foods, as well as rice, pancakes, and dumplings.

The 50 litres volume is suitable for preparing meals up to 80 servings

HOW DOES IT WORK?

Operation is very simple.
Heating is controlled via a knob with a temperature range of 50-250 (300) °C.
If needed, water can be filled into the pan directly from the tap for cold and hot water, using an automatic button on the control panel.
The pan can easily be covered with a lid, and the contents (cooked food, or water) can be tilted using a control wheel, which is easy to operate.

EQUIPMENT AND FEATURES:

Fast and even roasting, non-stick surface.
Low consumption and low operating costs.
Self-supporting, robust, and solid construction, long service life.
Robust metal controls with safety features ensuring IP65 water resistance.
Option to choose between stainless steel or cast iron.
Factory-set gas configuration: natural gas (G20).

ADDITIONAL PARAMETERS:

self-supporting, robust, and durable
high-quality stainless steel
rounded edges without danger corners and protrusion
chimney slope design on the top plate for added safety
double insulation on cables and wires (silicone protection)

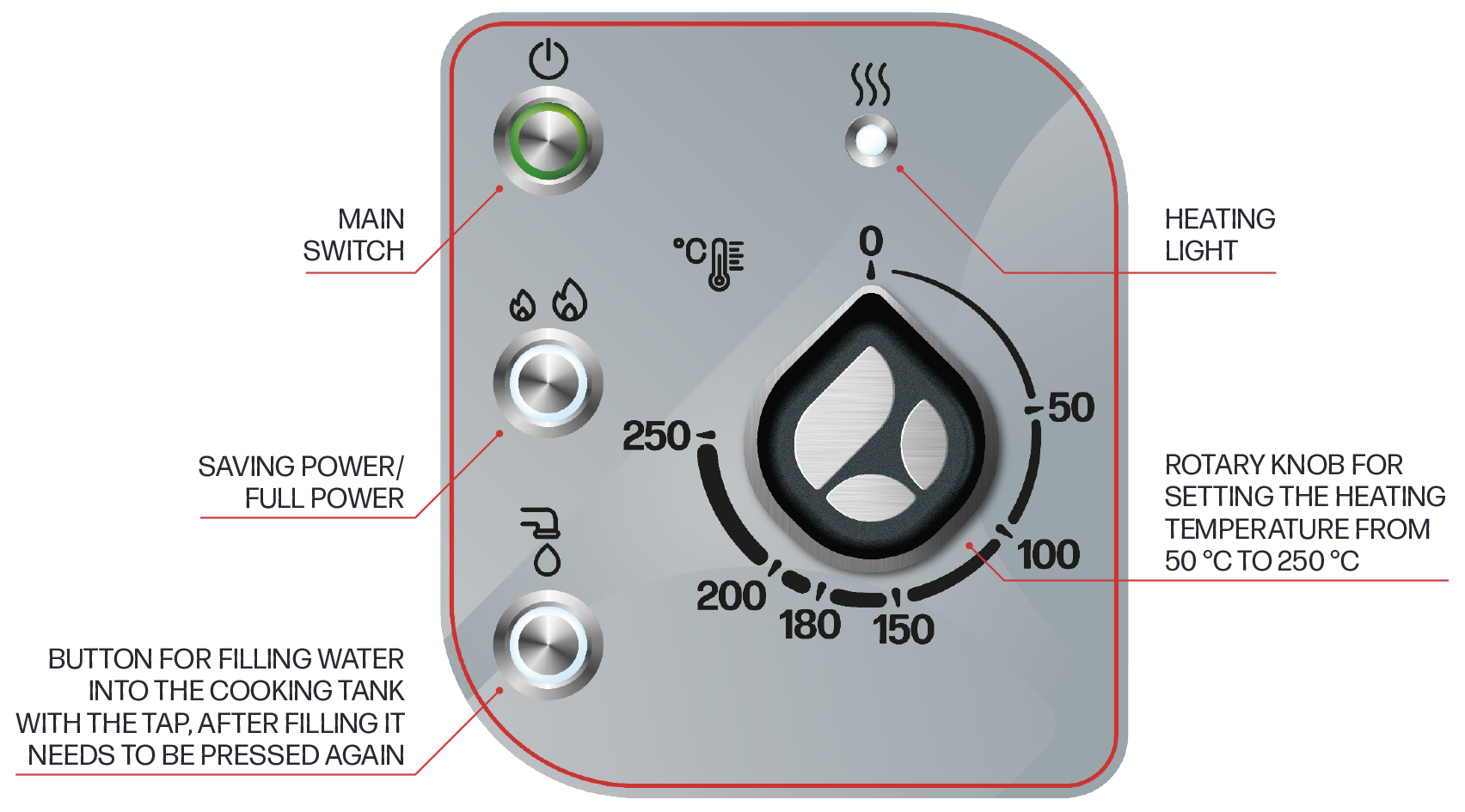

CONTROLS

main power switch, main control knob for setting the heating power from 50 °C to 250 °C,
selector switch (half power/full power)
heating indicator light, on/off switch for filling water from the tap for cold and hot water into the pan vessel.
gas valve control knob

STANDARD ACCESSORIES INCLUDED IN THE PRICE OF THE EQUIPMENT
- lid
- tap for cold and hot water with automatic button
- control wheel
- adjustable feet

OPTIONAL ACCESSORIES (EXTRA CHARGE)
- square steamer for steaming dumplings or sweet buns
- strainer for pan outlet - tool for draining food during pan tilting
- conversion nozzle kit for propane (G31) operation.

TYP	PP-750	PP-980	PP-9120	PP-980 C	PP-750 C	PP-9120 C	P.PP-9120	P.PP-750	P.PP-980	P.PP-980-C	P.PP-750-C	P.PP-9120-C
External dimensions wdh	800 x 700 x 900 mm	900 x 900 x 900 mm	1200 x 900 x 900 mm	900 x 900 x 900 mm	800 x 700 x 900 mm	1200 x 900 x 900 mm	1200 x 900 x 900 mm	800 x 700 x 900 mm	900 x 900 x 900 mm	900 x 900 x 900 mm	800 x 700 x 900 mm	1200 x 900 x 900 mm
Volume	50 l	80 l	120 l	80 l	50 l	120 l	120 l	50 l	80 l	80 l	50 l	120 l
Dimensions of the cooking tank	700 x 422 x 160 mm	800 x 600 x 192 mm	1100 x 604 x 212 mm	800 x 600 x 210 mm	700 x 422 x 160 mm	1100 x 604 x 212 mm	1100 x 600 x 212 mm	700 x 435 x 160 mm	800 x 600 x 192 mm	800 x 600 x 190 mm	700 x 435 x 158 mm	1100 x 600 x 210 mm
Tank bottom material	stainless steel	stainless steel	stainless steel	cast-iron	cast-iron	cast-iron	stainless steel	stainless steel	stainless steel	cast-iron	cast-iron	cast-iron
Weight	100 kg	150 kg	180 kg	150 kg	100 kg	180 kg	180 kg	100 kg	150 kg	150 kg	100 kg	180 kg
Manual tilting
Tap for cold water
GAS consumption	1,12 m³/h	1,84 m³/h	2,08 m³/h	1,84 m³/h	1,12 m³/h	2,08 m³/h	2,04 m³/h	1,09 m³/h	1,8 m³/h	1,8 m³/h	1,09 m³/h	2,04 m³/h
Heat input in SAVING power	7,3 kW	7,5 kW	9 kW	7,5 kW	7,3 kW	9 kW	15 kW	7,3 kW	14 kW	14 kW	7,3 kW	15 kW
Heat input in FULL power	10,9 kW	18 kW	20,4 kW	18 kW	10,9 kW	20,4 kW	20,4 kW	10,9 kW	18 kW	18 kW	10,9 kW	20,4 kW
Thermostat range (°C)	50–250 °C	50–250 °C	50–250 °C	50–250 °C	50–250 °C	50–250 °C	-	-	-	-	-	-
Max. temperature at 250 °C	280-300 °C	280-300 °C	280-300 °C	280-300 °C	280-300 °C	280-300 °C	-	-	-	-	-	-
GAS connection	3/4 "	3/4 "	3/4 "	3/4 "	3/4 "	3/4 "	3/4 "	3/4 "	3/4 "	3/4 "	3/4 "	3/4 "
Temperature range	-	-	-	-	-	-	50-250 °C	50-250 °C	50-250 °C	50-250 °C	50-250 °C	50-250 °C
